Advanced Weighing Systems
WW-20  Wheel Weighers


Advanced Weighing Systems model WW-20 portable wheel weighers are rugged, but light enough for easy transport, weighing in at only 27kg per platform. They can be connected to any of the digital indicators supplied by A1 Weighing Equipment and can display axle weights and gross weight. With battery-operated portable tally roll printer, you may print axle weight, gross weight, time, and date. The interlocking rubber ramps snap perfectly into place with the WW-20's unique design.

WW-20 Features
Low-profile (44mm high) design with integral transport handle
Six strain gauge load cell design
Large enough to weigh dual axles
Corrosion resistant

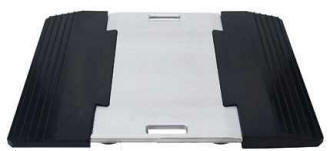

Interlocking rubber ramps
Rubber ramps for easy access. Ramps are interlocking and constructed from slip-resistant black rubber. Ramps measure 710 x 250 mm).



WW-10 Wheel weighers each have a capacity of 10,000kg (20,000kg per axle)
WW-20 Specifications
Model No: WW-20 (contains 2 platforms)
Capacity: 10,000 kg per platform or 20,000 kg for single axle
Division Size: 10kg
Platform Size: 610 mm L x 36o mm W weighing surface
Overall Size: 720 mm L x 450 mm W x 44 mm H)
Weight: 27 kg per platform
Safe Overload: 150% of capacity
Output Per Platform: 1.75mV/V
Input Resistance: 750 ohms
Output Resistance: 750 ohms
No. of Load Cells: 6 each strain gauge load cells
Maximum Resolution: 1,000 divisions
Accuracy: The greater of +/-0.5% of applied load or 1 division of applied load

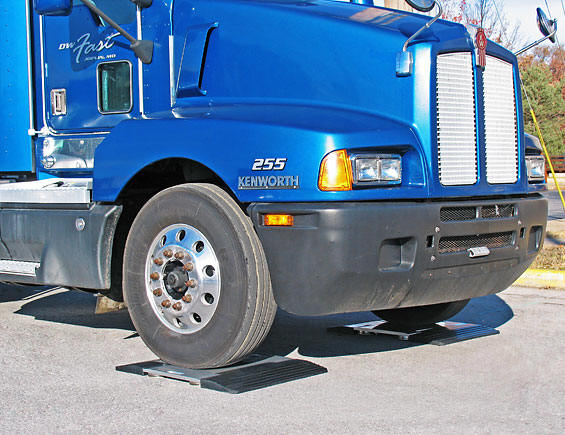

Each wheel weigher is completely portable

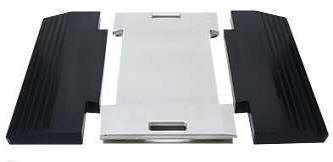

Rubber ramps are removable for easy transportation
